Hardware configuration
Processor: Qualcomm® IPQ8072 quad-core A53 2.2GHz CPU
Network processing unit: Dual-core 1.7GHz NPU
Memory: 1GB
2.4G Wi-Fi
4x4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 1148Mbps)
5GHz-1 Wi-Fi
4x4 (supports up to IEEE 802.11ax protocol, the theoretical maximum rate is 4804Mbps)
5GHz-2 Wi-Fi
4x4 (supports up to IEEE 802.11ax protocol, theoretical maximum rate is 2402Mbps)
Antennas: External high gain antenna + internal AIoT antenna
Heat dissipation: Active cooling
Total ports
- 10/100/1000/2500Mbps adaptive WAN/LAN port (Auto MDI/MDIX) x1
- 10/100/1000Mbps adaptive WAN/LAN port (Auto MDI/MDIX) x1
- 10/100/1000Mbps adaptive LAN ports (Auto MDI/MDIX) x3
LED indicator light
- 8 lights, include: System indicator x 1, Internet indicator x 1, Network port x 5, Atmosphere light x 1
- System reset buttonx1
- USB 3.0 port: x1
- Mesh networking button: x1
- Power button: x1
- Power input port: x1
- Protocol standards: IEEE 802.11a/b/g/n/ac/ax，IEEE 802.3/3u/3ab
Wireless specifications
Tri-band2.4GHz, 5GHz-1 and 5GHz-2
Modulation
- 11b：DSSS：DBPSK(1Mbps),DQPSK(2Mbps),CCK(5.5/11Mbps)
- 11a/g：OFDM:BPSK(6/9Mbps),QPSK(12/18Mbps),16QAM(24/36Mbps),
- 64QAM(48/54Mbps)
- 11n：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM.
- Data rate：MCS0-MCS15
- 11ac：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM.
- 11ax：MIMO-OFDM:BPSK,QPSK,16QAM,64QAM,256QAM,1024QAM.
- Data rates: MCS0-MCS11 (supports 4 streams).4096QAM.
- Data rates: MCS12-MCS13 (supports 2 streams)
Software specifications
- Operating system: MiWiFi ROM, a smart router operating system based on OpenWRT: WiFi Encryption
- WPA-PSK/WPA2-PSK/WPA3-SAE encryption,
- Wireless access control (black and white list), SSID hidden
- Management applications: Supports Web, Android, iOS
Working environment
- Working environment temperature0-40℃
- Operating humidity10%-90%RH (non-condensing)
- Storage temperature-40-70℃
- Storage humidity5%-90%RH (non-condensing)
Package contents

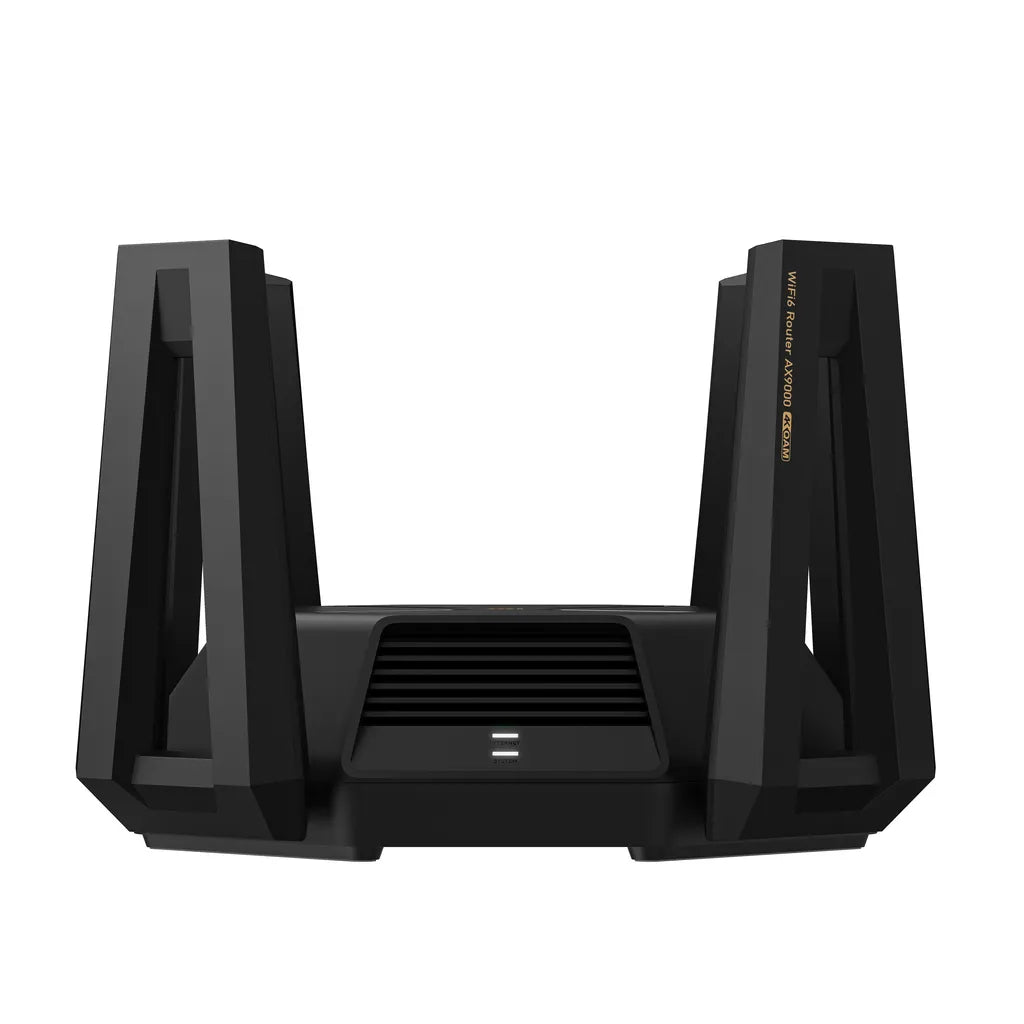

- Mi Router AX9000 x1
- Instruction Manual x1
- Power adapter x1
- Network cable x1
