Heatit Z-Din 616

Heatit Z-Din 616

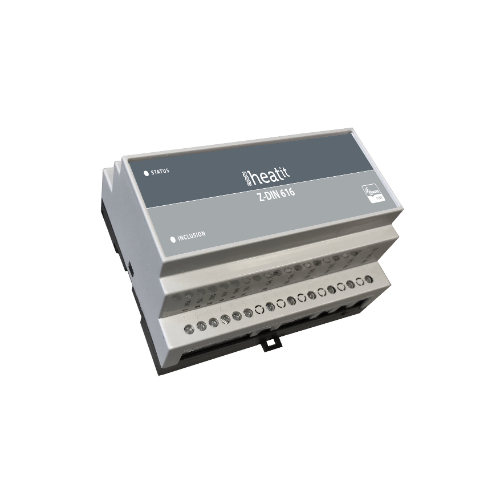

"Heatit Z-DIN 616 is a 6 x 16A potential free relays for DIN rail mounting. The module is equipped with 6 relay switches and 6 digital inputs for mounting on a standard M36 DIN rail (EN50022).

The 6 independent relay switches of the Heatit Z-DIN 616 can freely be controlled from the Z-Wave network and be used for many different purposes.

All 6 relay switches are galvanically isolated from each other. and may be used for controlling AC and/or DC loads. Each relay switch is rated for loads of up to a maximum of 16A.

The 6 digital inputs can be connected to dry contacts, e.g., limit switches, door/window contacts, or pushbuttons. Another option is to connect them to open-collector outputs from discrete sensors, e.g., PIR sensors. The 6 inputs of the Heatit Z-DIN 616 may also function as a scene controller and activate predefined scenes in other Z-Wave devices or controllers (by transmitting Central Scene notifications).

The Heatit Z-DIN 616 is supplied from a 10 – 24Vdc power supply. Initiation of Z-Wave inclusion and exclusion is executed by activating a push-button through a little hole in the front of the module. The Heatit Z-DIN 616 is equipped with a LED in the front of the module for different kinds of status indications."
